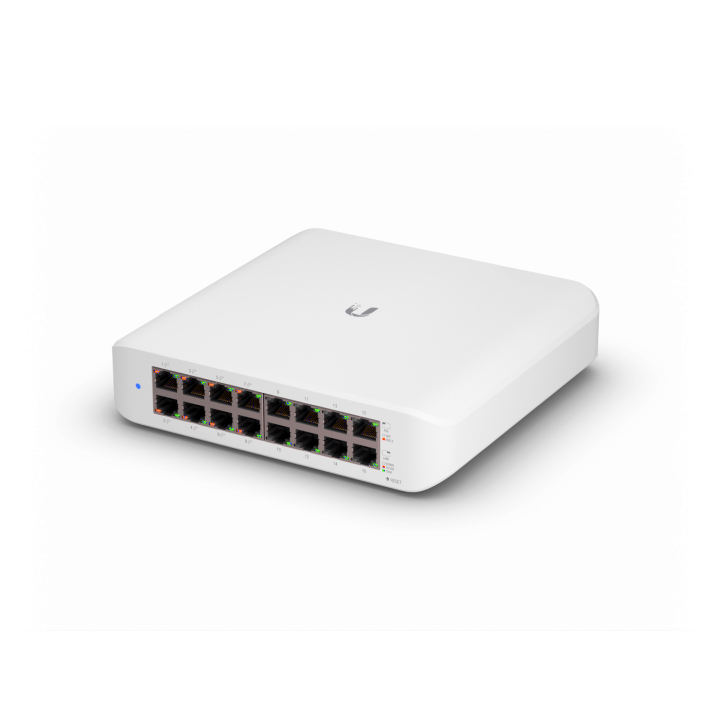

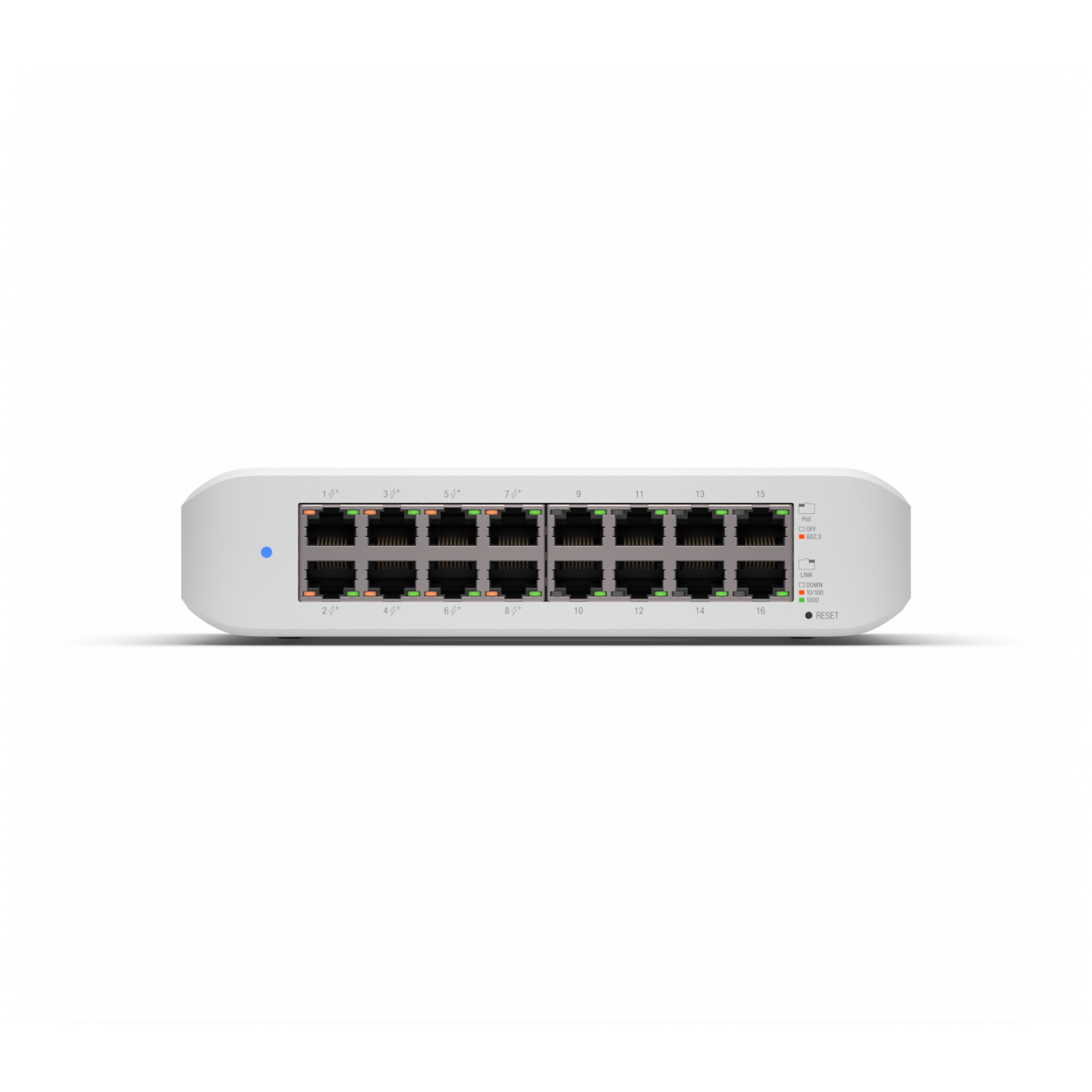

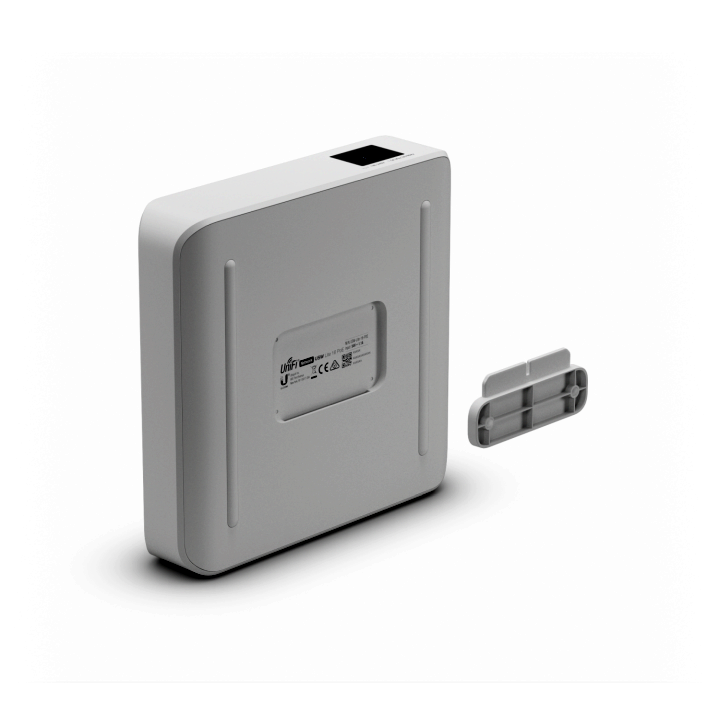

Ubiquiti Switch Lite / 16 Port / 8x POE+ / 8 x RJ45 Gigabit / 45W / USW-Lite-16-PoE
Tax included.
| Mechanical | |
|---|---|
| Dimensions | 191.7 x 185 x 43.7 mm (7.6 x 7.3 x 1.7") |
| Weight | 1.2 kg (2.6 lb) |
| Enclosure material | Plastic |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (16) GbE RJ45 ports |
| PoE interface | (8) PoE/PoE+ (Pins 1, 2+; 3, 6-) |
| Total non-blocking throughput | 16 Gbps |
| Switching capacity | 32 Gbps |
| Power method | Universal input, 100—240V AC |
| Power supply | AC/DC, internal, 60W |
| Max. power consumption | 15W (Excluding PoE output) |
| Total available PoE | 45W |
| Max. PoE wattage per port by PSE | PoE+: 30W |
| Button | Factory reset |
| Operating temperature | -15 to 40° C (5 to 104° F) |
| Operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | Status |
| Ethernet | PoE Speed/link/activity |
| PoE | Link/activity |
| Application Requirements | |
| UniFi Network | Version 7.2.94 and later |
